EDU System | Passive Modules |
DC Electrolytic Capacitive Loads
PEM.EDU.CAP.ELEC.0X. A. XXXX.XXXXX
Description:
PEModule PLUGY EDU DC Electrolytic capacitive load module includes 6X high efficiency Electrolytic capacitors for different configuration and connection coverage different applications.
Main Features:
- Appropriate for DC single-phase capacitive Load with different parallel and series configurations.
- Appropriate for DC single-phase low pass filter with different parallel and series configurations.
- Safety shouldered Power Banana connectors for easy connection

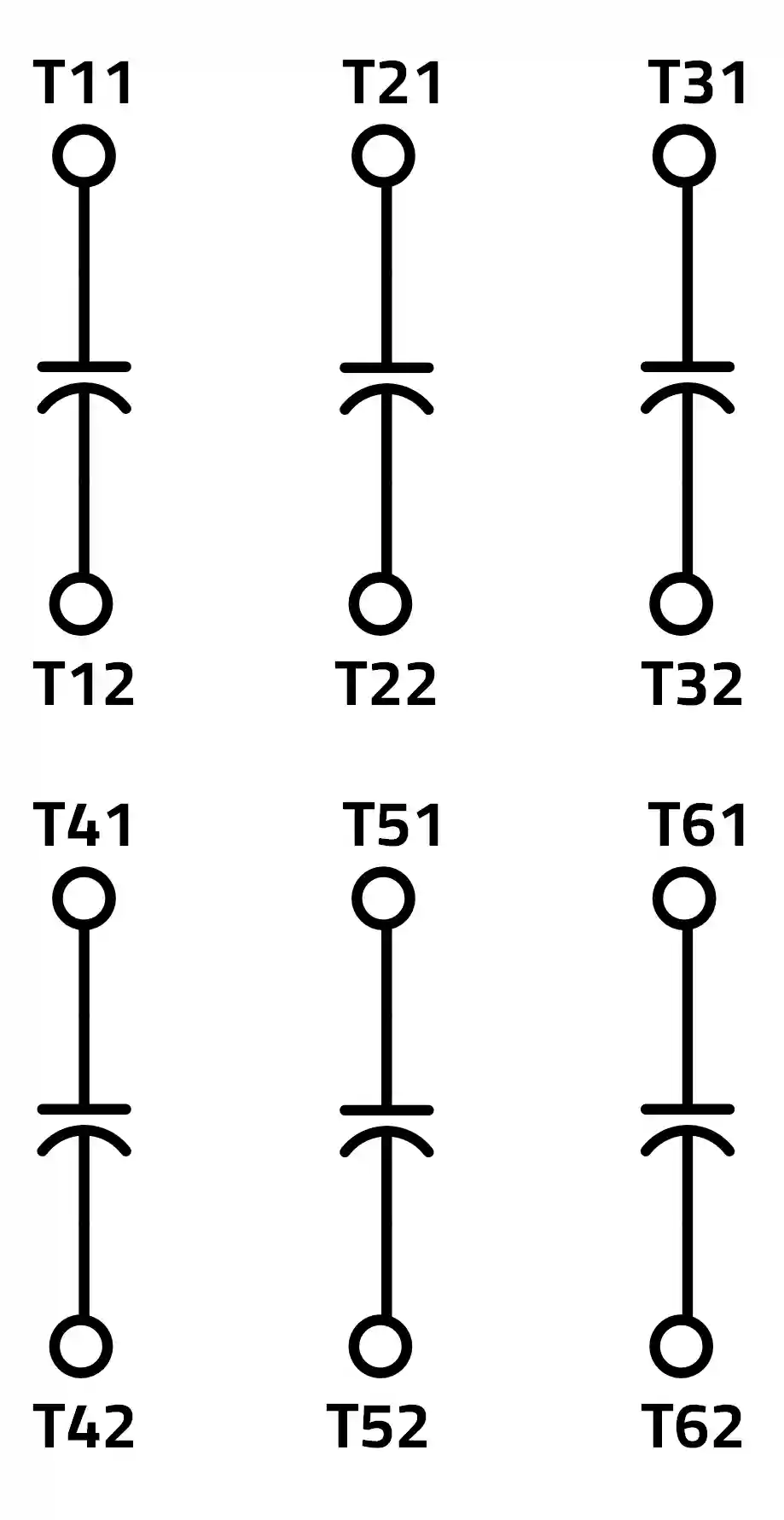

- Six separate DC capacitors for different configurations
- Clear transparent back cover for system components demonstration.
- Upgradable (easy to replace).
- Heavy duty compact size steel enclosure for high durability and easy to move.
Follow us
EDU Module Specifications
EDU Module Specifications
| PLUGY SYSTEM Part no. | C (μF) | VAC Max(V) | Iripp (A) |
|---|---|---|---|
| PEM.EDU.CAP.ELEC.01. A. 0800.00075 | 75 | 800 | 0.76 |
| PEM.EDU.CAP.ELEC.01. A. 0400.00150 | 150 | 400 | 0.76 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00390 | 390 | 450 | 2 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00330 | 330 | 450 | 2.1 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00220 | 220 | 450 | 1.2 |
| PEM.EDU.CAP.ELEC.01. A. 0250.01000 | 1000 | 250 | 3.3 |
| PEM.EDU.CAP.ELEC.01. A. 0250.00680 | 680 | 250 | 2.5 |
| PEM.EDU.CAP.ELEC.01. A. 0250.00470 | 470 | 250 | 1.4 |
| PEM.EDU.CAP.ELEC.01. A. 0063.04700 | 4700 | 63 | 3.5 |
| PEM.EDU.CAP.ELEC.01. A. 0063.03300 | 3300 | 63 | 2.7 |
| PEM.EDU.CAP.ELEC.01. A. 0035.10000 | 10000 | 35 | 3.5 |
| PLUGY SYSTEM Part no. | C (μF) | VAC Max(V) | Iripp (A) |
|---|---|---|---|
| PEM.EDU.CAP.ELEC.01. A. 0800.00195 | 195 | 800 | 2 |
| PEM.EDU.CAP.ELEC.01. A. 0800.00165 | 165 | 800 | 2.1 |
| PEM.EDU.CAP.ELEC.01. A. 0400.00300 | 300 | 400 | 1.52 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00780 | 780 | 450 | 4 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00660 | 660 | 450 | 4.2 |
| PEM.EDU.CAP.ELEC.01. A. 0450.00440 | 440 | 450 | 2.4 |
| PEM.EDU.CAP.ELEC.01. A. 0250.02000 | 2000 | 250 | 6.6 |
| PEM.EDU.CAP.ELEC.01. A. 0250.01360 | 1360 | 250 | 1.4 |
| PEM.EDU.CAP.ELEC.01. A. 0250.00940 | 940 | 250 | 2.8 |
| PEM.EDU.CAP.ELEC.01. A. 0063.09400 | 9400 | 63 | 7 |
| PEM.EDU.CAP.ELEC.01. A. 0063.06600 | 6600 | 63 | 5.4 |
| PEM.EDU.CAP.ELEC.01. A. 0035.20000 | 20000 | 35 | 7 |
